Diagram

We have set up a configuration diagram for the hotel’s mapping room.

I. Add Floor

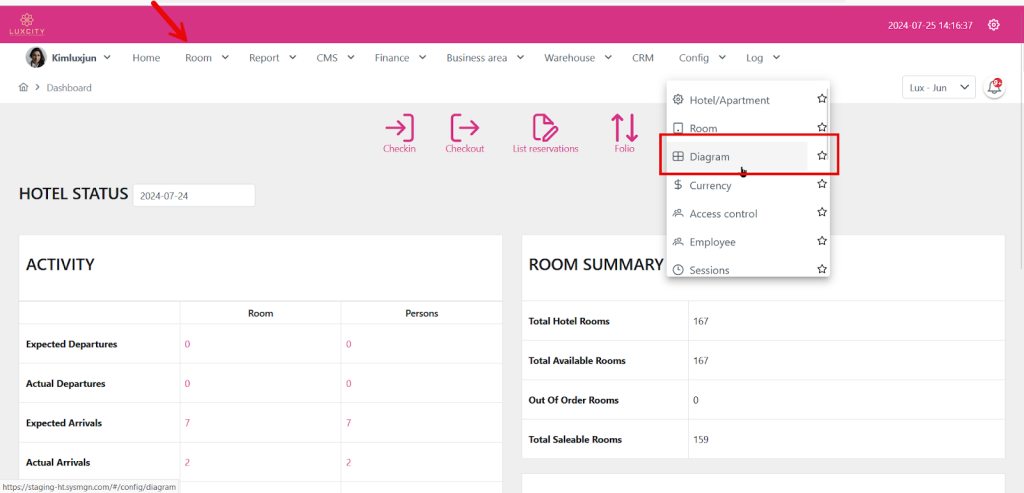

Step 1: Go to Room proceed to diagram

• Add Name
• Diagram new floor 1

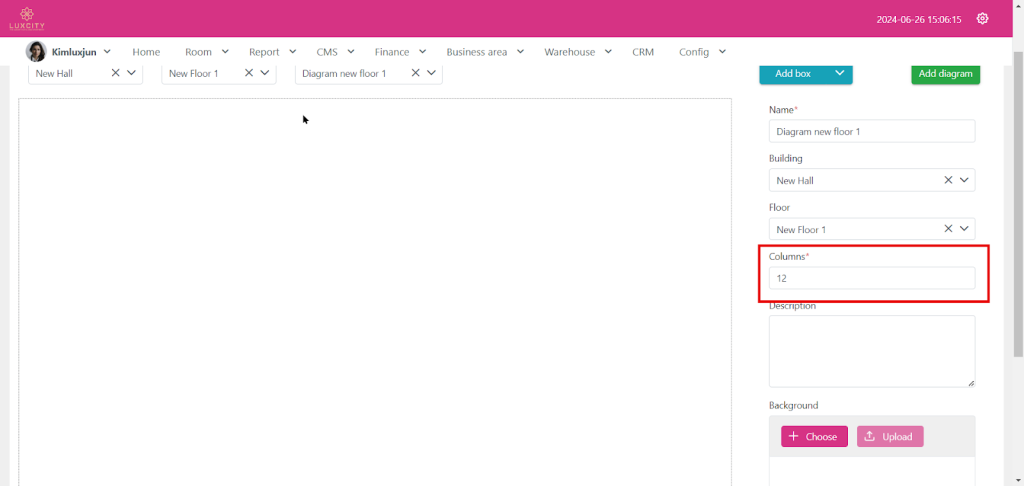

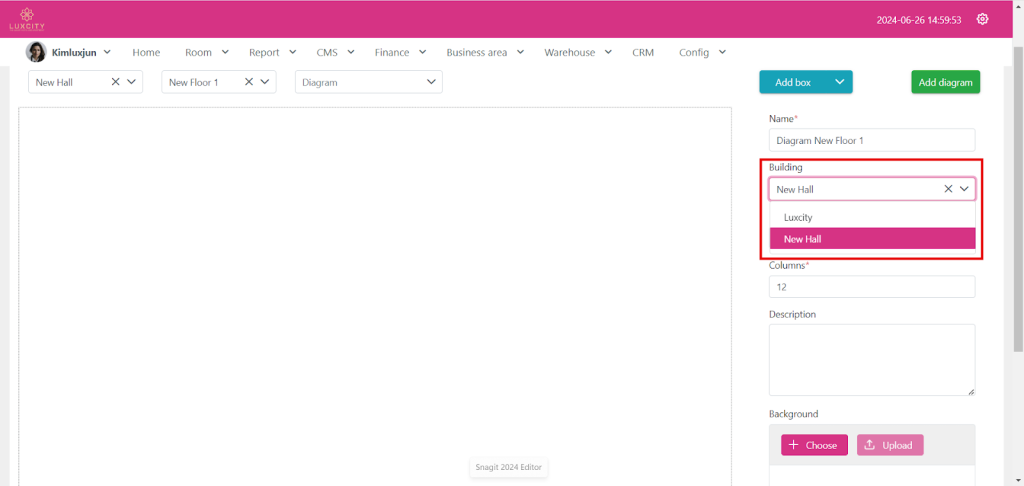

Step 2: Choose Building New Hall

Columns default 12

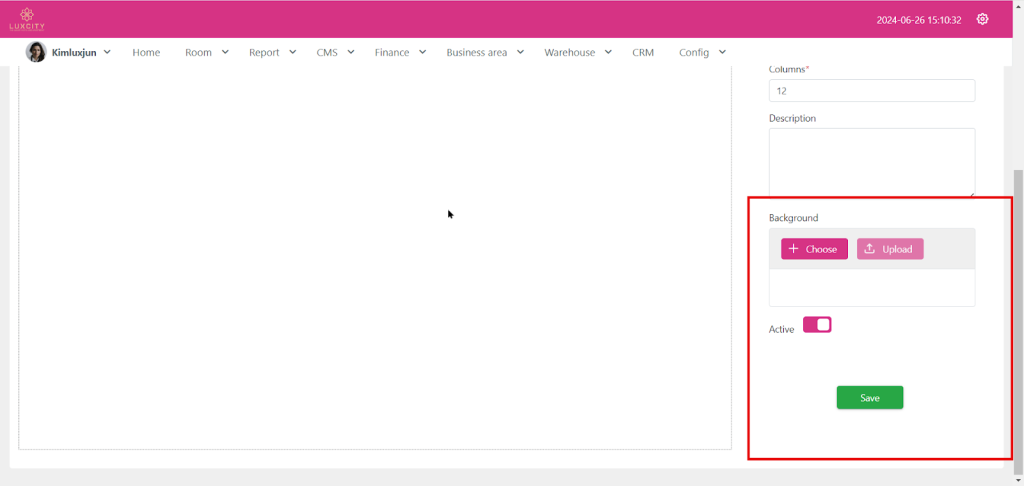

Step 4: Description ( No require)

Step 5: Upload Back groud. Choose Image upload and save.

II. Add Daigram

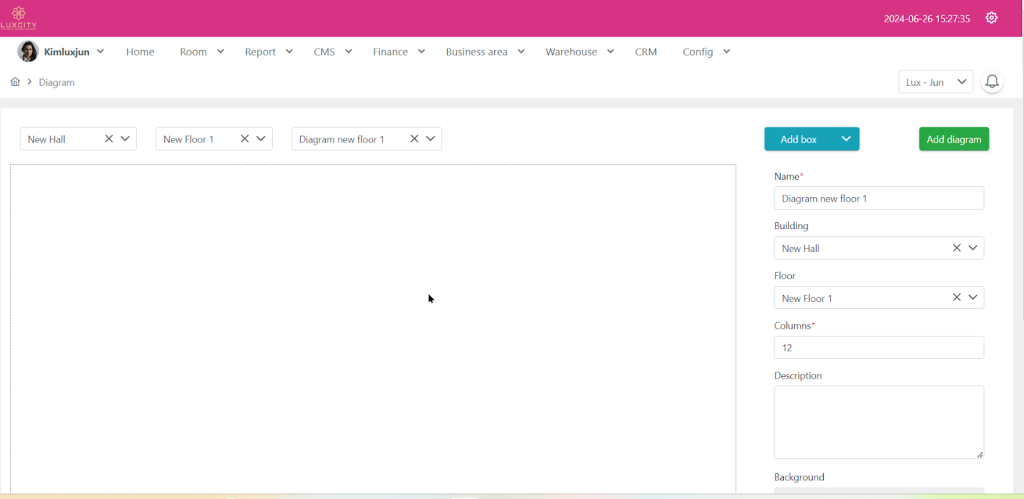

1. Step 1: Choose


Build

Floor

Diagram

Step 2: Add diagram with Box size or circle box choose one.

• Step 3: Add box
  • Name
  • Type(Box or circle)
  • Room assigned the room
  • And Update

=> Save and button Active click for available.

II. Edit diagram

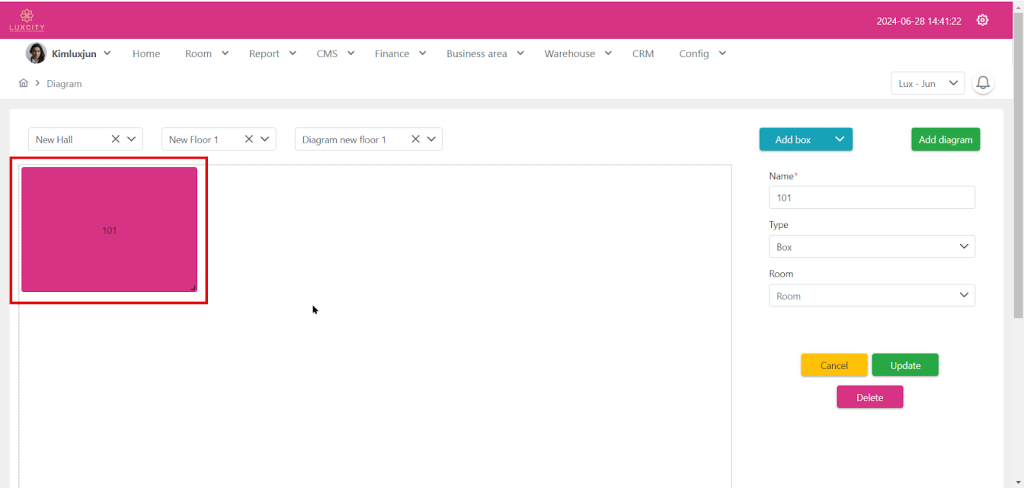

Edit for name

Type Edit for size (Box or Circle)

Assign for new room

III. Delete Diagram

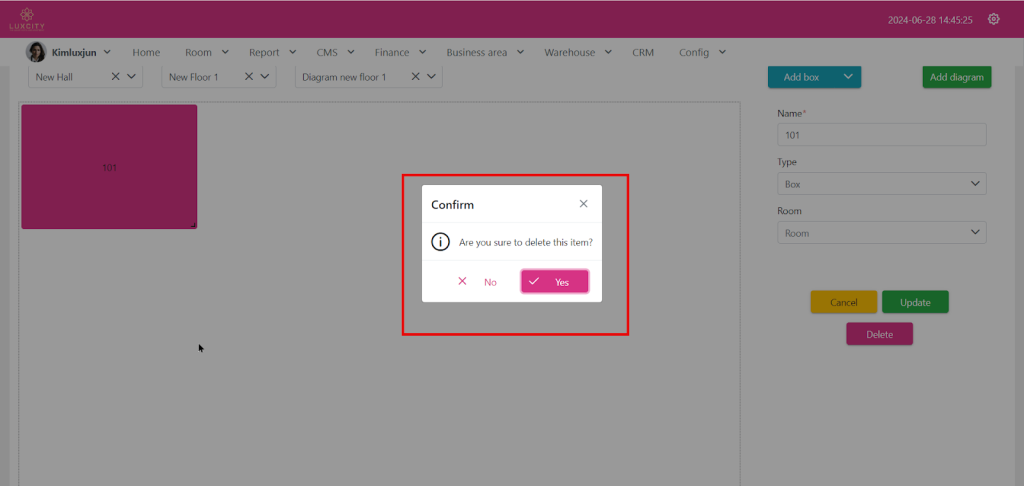

• Delete diagram select on item . The system will prompt you to confirm the deletion of this item.
